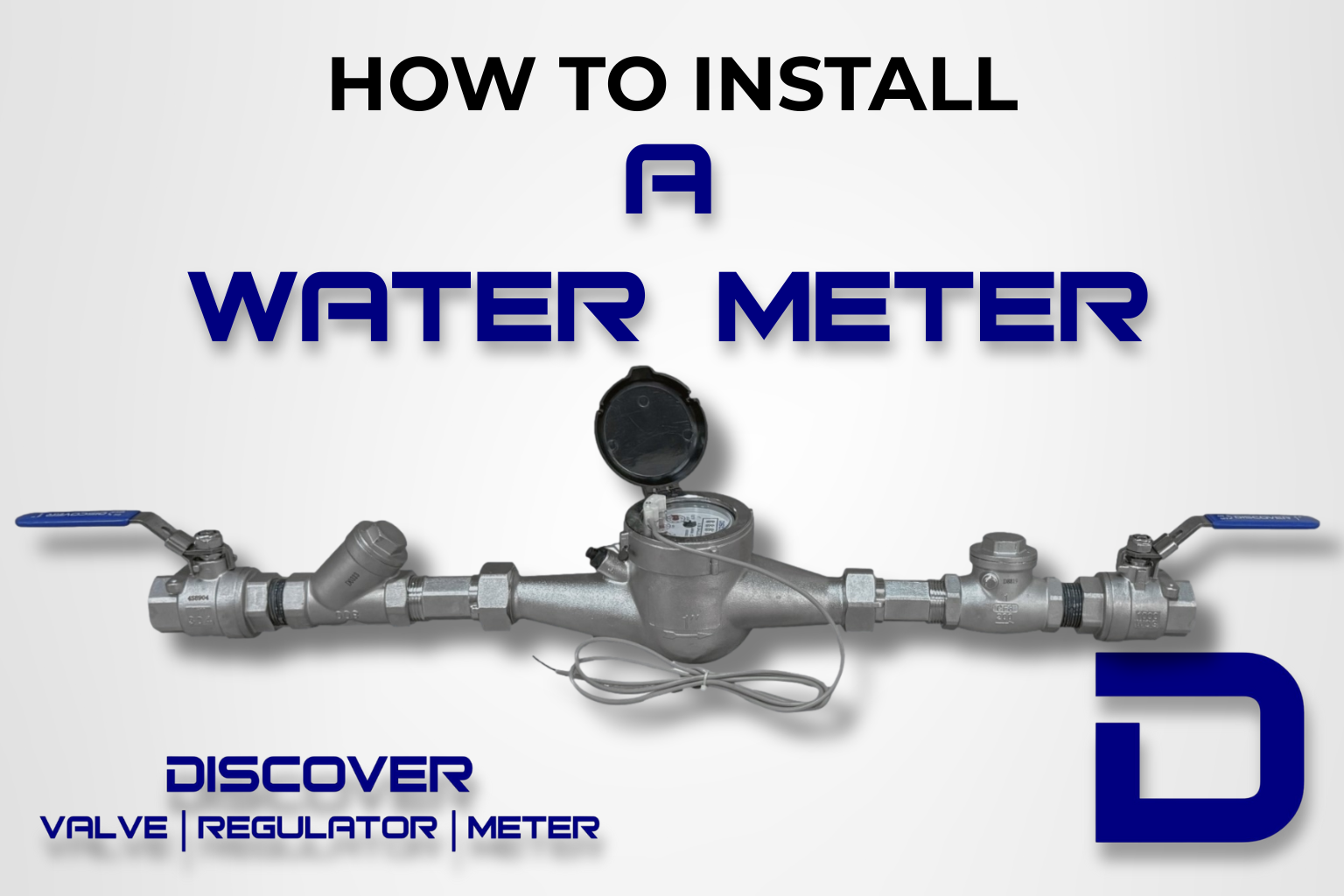

Stainless Steel Water Meter Installation Guide <!-- --> When installing stainless steel water meters, proper alignment and sealing are critical to long-term performance. This guide from Discover Valve outlines step-by-step instructions for a leak-free installation—whether in residential, commercial, or industrial settings. 1. Align for a Proper Fit Before tightening the coupling nut, make sure the coupling (tailpiece) and meter body surfaces are aligned parallel to each other . This helps avoid cross-threading or damage due to thread binding and ensures proper gasket seating. 2. Gasket Fit Matters Confirm that the gap between the coupling and meter body is equal to the thickness of the gasket . If the space is too tight or too loose, you may risk a poor seal or gasket blowout. 3. Don’t Use Thread Sealant on the Meter Body The meter body threads are straight threads , not tapered. Do not use pipe dope or Teflon tape here. Instead, apply a small amount of anti-seize lubricant to prevent galling and make future removal easier. 4. Use Thread Sealant on the Coupling Threads On the coupling/tailpiece tapered threads (the part that connects to your plumbing system), use an approved pipe dope or thread sealant tape to ensure a tight, leak-free seal. 5. Do Not Tamper With the Meter Never cut the anti-tamper wire or open the meter body. Doing so will void all warranties and may damage the unit. 6. Flush the Line First Before connecting the meter, flush the line thoroughly to remove any dirt, sand, or pipe scale that could damage the meter internals. 7. Install Isolation Valves To make future servicing easier, install ball valves on both sides of the meter . These isolation valves allow you to shut off water flow upstream and downstream, making replacement or maintenance far easier and cleaner. 8. Correct Orientation Matters Install the meter horizontally , with the register facing upward and the inlet port toward the supply line . This ensures accurate readings and optimal water flow. 9. Protect the Meter Outdoors If the meter is installed outdoors, shield it from direct sunlight, rain, and freezing temperatures . Insulation or housing is recommended to prevent damage from the elements. 10. Use a Y-Strainer for Protection Installing a y-strainer upstream of the meter is strongly recommended. It acts as a first line of defense, catching large particles that could clog or damage the meter. For all installations, we recommend pairing your water meter with properly-sized components to ensure long-term performance and reliability. Discover Valve offers a full line of lead-free stainless steel water meters , 800 WOG stainless y-strainers , and 200 WOG full-port ball valves , all precision-built for demanding environments. Whether you're outfitting residential, commercial, or industrial systems, Discover Valve products are engineered for consistency, durability, and peace of mind. Stainless Steel Water Meter Installation – Recommended Pairings Water Meter Y‑Strainer Ball Valves (Qty 2) ½″ Stainless Steel Water Meter ½″ Stainless Steel Threaded Y‑Strainer ½″ SS Full‑Port Ball Valve, 200 WOG ¾″ Stainless Steel Water Meter ¾″ Stainless Steel Threaded Y‑Strainer ¾″ SS Full‑Port Ball Valve, 200 WOG 1″ Stainless Steel Water Meter 1″ Stainless Steel Threaded Y‑Strainer 1″ SS Full‑Port Ball Valve, 200 WOG 1½″ Stainless Steel Water Meter 1½″ Stainless Steel Threaded Y‑Strainer 1½″ SS Full‑Port Ball Valve, 200 WOG 2″ Stainless Steel Water Meter 2″ Stainless Steel Threaded Y‑Strainer 2″ SS Full‑Port Ball Valve, 200 WOG Installing a stainless-steel water meter isn’t just about tightening fittings—it’s about protecting the integrity of your system from day one. From proper alignment and sealing to protecting against debris and environmental damage, each step matters. When paired with the right components—y-strainers, isolation valves, and trusted hardware—you’re not just installing a meter; you’re building reliability into every drop. At Discover Valve , we don’t just sell parts—we provide solutions engineered to last. Our lead-free stainless steel water meters, high-pressure y-strainers, and full-port ball valves are field-tested, precision-built, and always in stock. Ready to build it right the first time? Visit discovervalve.com to explore our full line of stainless steel components, or contact us directly for product support, custom quotes, or large-volume pricing.
